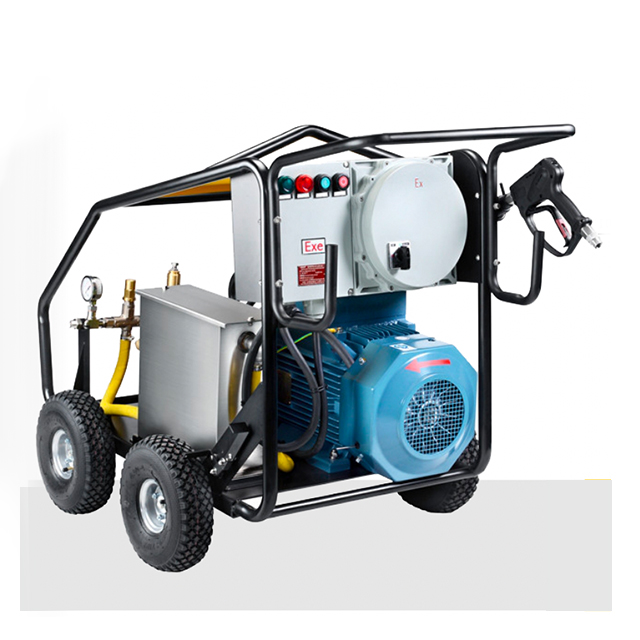

FS15/27 ATEX is an industrial anti-explosion high-pressure washer with high explosion proof feature, and it can be operated in places where explosive gases might present. It can not be operated in coal mine due to safety concern. Our customers can choose B or C class anti-explosion configuration according to their operating environment.
General Applications
Large Chemical production corporation
Offshore oil drilling platform
Pharmaceutical factory
Warehouse with high anti-explosion requirement
......
Technical Specitications
Supply voltage (Ph/V/Hz) | 3/400/50 |
Maximum Flow Rate (L/H) | 900 |
Maximum Pressure (Bar/Mpa/Psi) | 270/27/3915 |
Maximum Inlet Water Temperature (*C) | 60 |
Connected load (KW) | 11 |
Pump speed (RPM) | 1450 |
Machine Weight (Kg) | 180 |
Dimensions (L*W*H) (mm) | 1060*810*860 |
Equipment
Intelligent electronic control box
patented coupler
Anti-explosion low speed electric motor
High-precision industrial-grade nickel-plated brass crankshaft pump
Pressure regulating valve
High-capacity stainless steel water tank
High-density inlet water filter
Stainless steel anti-seismic pressure gauge
Heavy-duty welded steel frame
Heavy-duty pneumatic tires
Easy disassemble inlet water nozzle
Industrial-grade spray gun handle
1 meter stainless steel water spray lance
Fan-shaped spray nozzle
10 meters industrial-grade high pressure resistant hose
