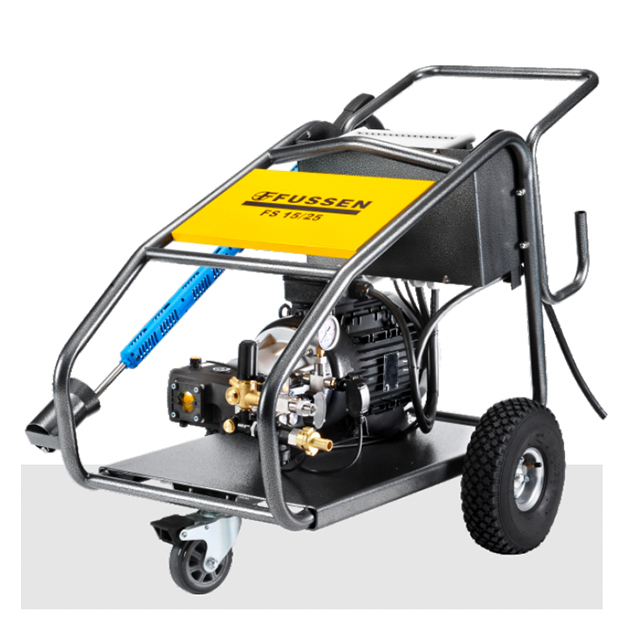

FS15/25 is an industrial electric high-pressure washer equipped with an intelligent electronic control box. The compact, user friendly and innovative design guarantee its excellent maneuverability and mobility. FS 15/25 can deliver a maximum 250 bar water spray that ensures extraordinary cleaning efficiency and outcome. The low speed industrial-grade motor is intentionally selected by Fussen engineers to work with industrial-grade nickel-plated brass crankshaft pump, because it not only extends the continuous operating hours to 8 hours but also prolongs the lifespan of this washer impressively to 10 years.
General Applications
Property cleaning
Bark cleaning for woodcarving
Cement production plant cleaning
Concrete surface cleaning and roughening in construction site
Casting surface sand cleaning
Steamship surface paint and rust cleaning
Heat exchanger and condenser cleaning and unclogging
Automobile factory floor and equipment cleaning
Technical Specitications
Supply voltage (Ph/V/Hz) | 3/400/50 |
Maximum Flow Rate (L/H) | 900 |
Maximum Pressure (Bar/Mpa/Psi) | 250/25/3625 |
Maximum Inlet Water Temperature (°C) | 60 |
Connected load (KW) | 7.5 |
Pump speed (RPM) | 1450 |
Machine Weight (Kg) | 110 |
Dimensions (L*W*H) (mm) | 1060*810*860 |
Equipment
Intelligent electronic control box
Low speed electric motor
Patented coupler
High-precision industrial-grade nickel-plated brass crankshaft pump
Pressure regulating valve
Double pressure switch
High-density inlet water filter
Stainless steel anti-seismic pressure gauge
Heavy-duty welded steel frame
Heavy-duty pneumatic tires .
Easy disassemble inlet water nozzle
Industrial-grade spray gun handle
1 meter stainless steel water spray lance
Fan-shaped spray nozzle
10 meters industrial-grade high pressure resistant hose
