Briggs & Stratton two-cylinders petro engine
23
2460
200/2(V2900
60
120
1200*890*905
Availability: | |
---|---|
Quantity: | |

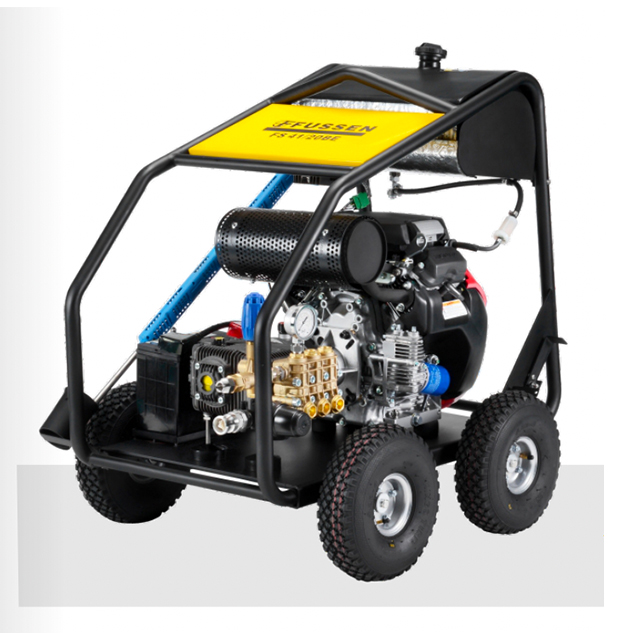

FS4 1/20BE ECO is an industrial-grade high-pressure washer equipped with Briggs & Stratton two-cylinder 23 HP petrol engine. This high-pressure washer can be ignited by electric starter in addition to the normal hand pulling method, which saves worker's energy and time. A gearbox is installed in the pressure washer to reduce the rotational speed of crankshaft pump, which not only extend the lifespan of sealing elements and pump head but also prolong the operational time. It can deliver 200 bar maximum pressure and 1080 liters per hour water spray.
High mobility due to no electrical connection required.
Cleaning Applications
Municipal pipe cleaning
Square and plaza floor cleaning
Technical Specitications
Engine model | Briggs & Stratton two-cylinders petro engine |
Engine power (HP) | 23 |
Maximum flow rate (L/H) | 2460 |
Maximum pressure (Bar/Mpa/Psi) | 200/2(V2900 |
Maximum water inlet Temperature (*C) | 60 |
Weight (Kg) | 120 |
Dimensions(L*W*H) (mm) | 1200*890*905 |
Equipment
Briggs & Stratton two-cylinders petro engine
Gearbox
Industrial-grade nickel-plated brass crankshaft pump
Ignition Battery .
high-capacity petrol tank
Pressure regulating valve
Inlet water filter
Stainless steel anti-seismic pressure gauge
Easy disassemble inlet water nozzle
Heavy-duty welded steel frame ;
Heavy-duty pneumatic tires
30 meters pipe cleaning tube
Pipe cleaning nozzle head
