FEK-G 系列

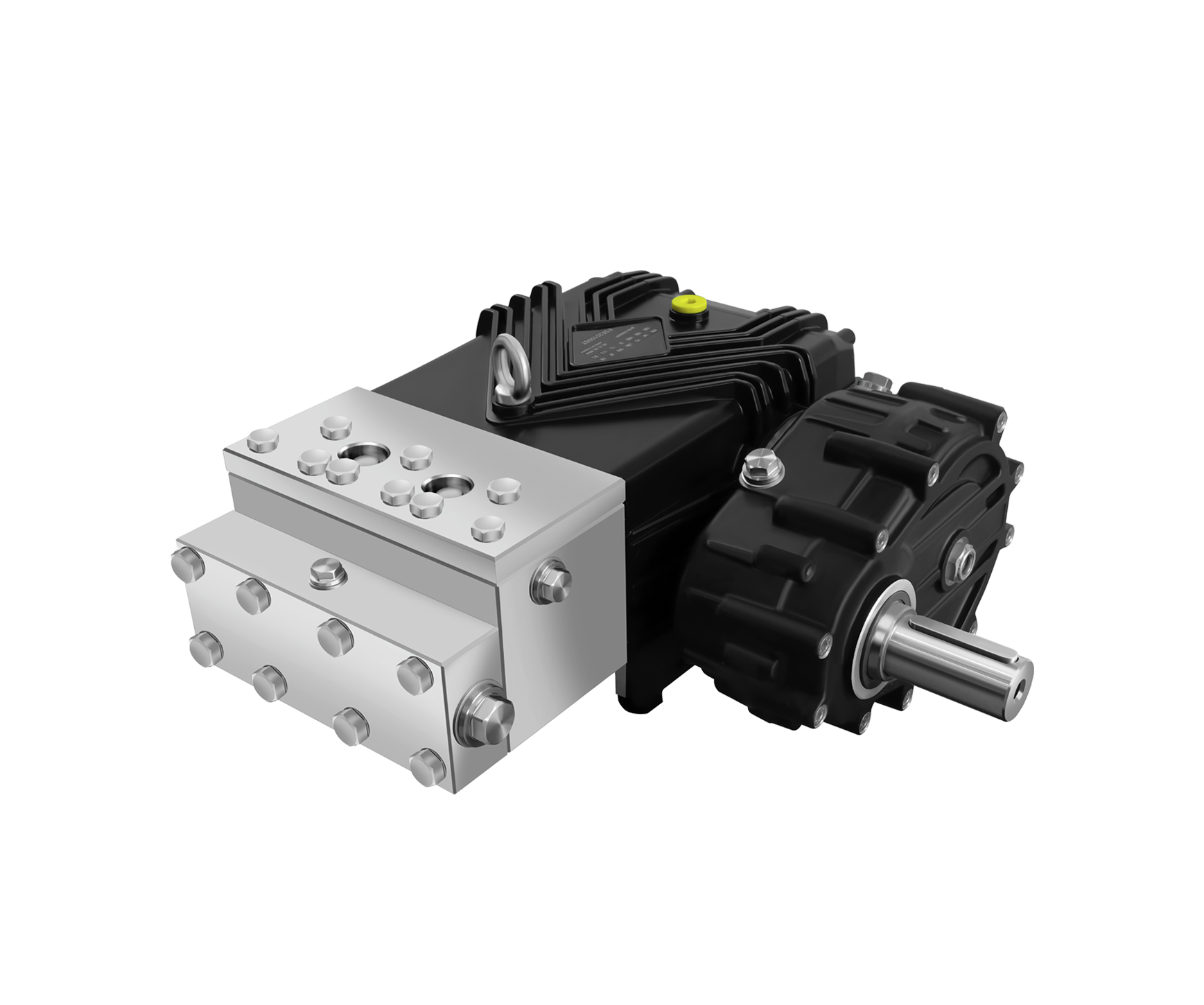

The FEK-G Series stainless steel pump integrates a gearbox to deliver torque at lower operating speeds, improving stability under heavy load. With a solid Ø40 mm shaft and reduced RPM design, it delivers 22.5–50 L/min with pressure capability up to 750 bar, helping smooth pressure control and reduce vibration in continuous duty. The stainless steel head provides corrosion resistance for marine and chemical service, while long-stroke ceramic plungers reduce friction and wear.

A crankshaft, premium bearings, and large oil capacity support cooling and extended service intervals during long shifts. Gearbox drive helps protect couplings and motors during pressure spikes. Typical applications include hydro-demolition skids, ship hull and tank cleaning, steel mill descaling, pressure testing, and industrial jetting installations.

Category:
SHARE AS
SHAFT
TECHNICAL PARAMETERS
DIMENSION DIAGRAM
DOCUMENTS

SHAFT

Soild Shaft Ø 40mm

Technical Parameters

Model

Speed

Flow Rate

Pressure

Power

Weight

Inlet

Outlet



RPM

L/min

GPM

Bar

Mpa

PSI

kW

HP

kg

Thread

Thread

FEK 3075

1000

30.0

7.9

750

75

10875

43.3

58.0

68.0

G 1"

G 1/2

FEK 3665

1000

36.0

9.5

650

65

9425

45.0

60.3

68.0

G 1"

G 1/2

FEK 4060

1000

40.0

10.6

600

60

8700

46.2

61.9

68.0

G 1"

G 1/2

FEK 4850

1000

48.0

12.7

500

50

7250

46.2

61.9

68.0

G 1"

G 1/2

FEK 5045

1000

50.0

13.2

450

45

6525

43.3

58.0

68.0

G 1"

G 1/2

FEK 2275

750

22.5

5.9

750

75

10875

32.5

43.5

68.0

G 1"

G 1/2

FEK 2765

750

27.0

7.1

650

65

9425

33.8

45.3

68.0

G 1"

G 1/2

FEK 3060

750

30.0

7.9

600

60

8700

34.6

46.4

68.0

G 1"

G 1/2

FEK 3650

750

36.0

9.5

500

50

7250

34.6

46.4

68.0

G 1"

G 1/2

FEK 3745

750

37.5

9.9

450

45

6525

32.5

43.5

68.0

G 1"

G 1/2

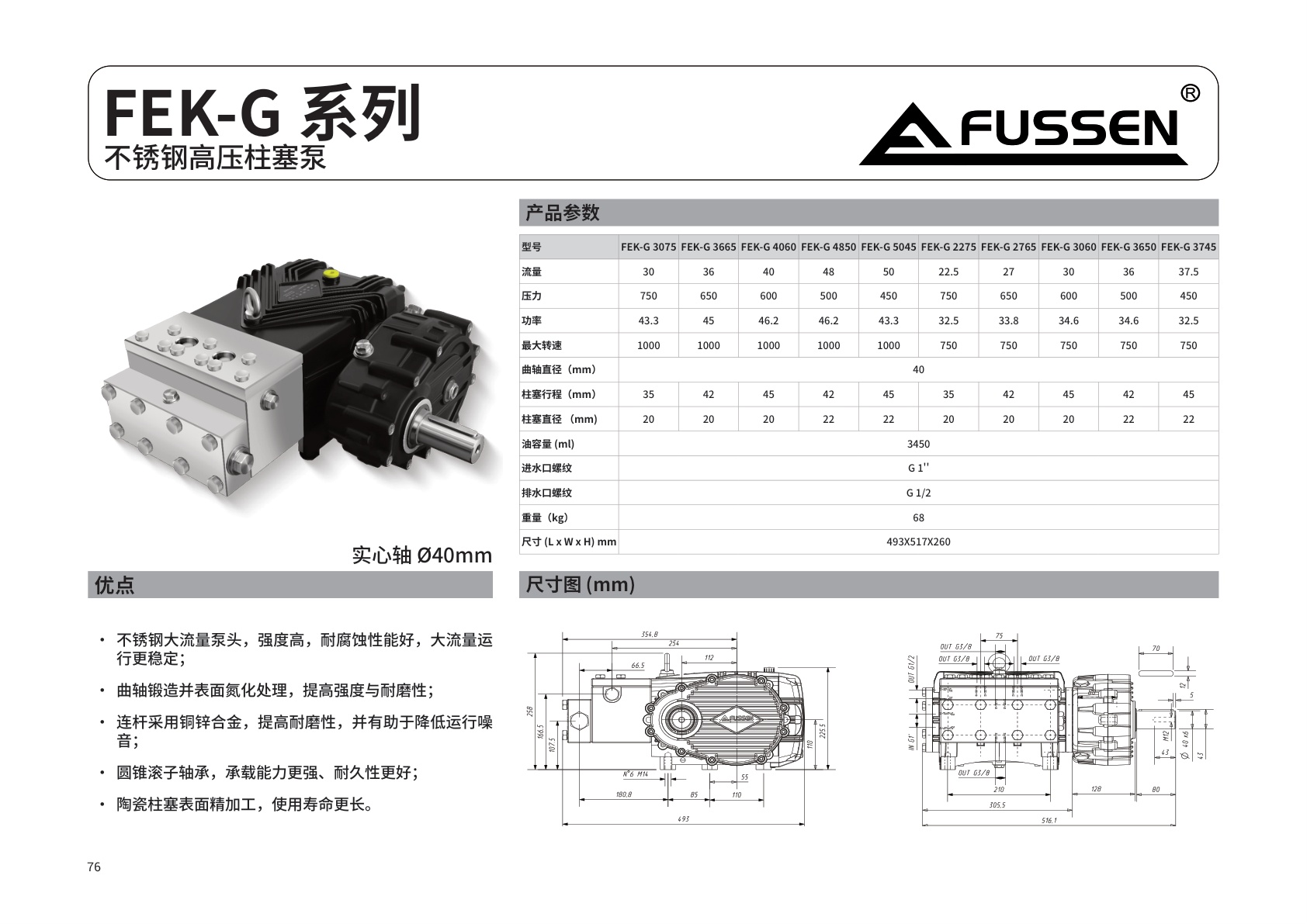

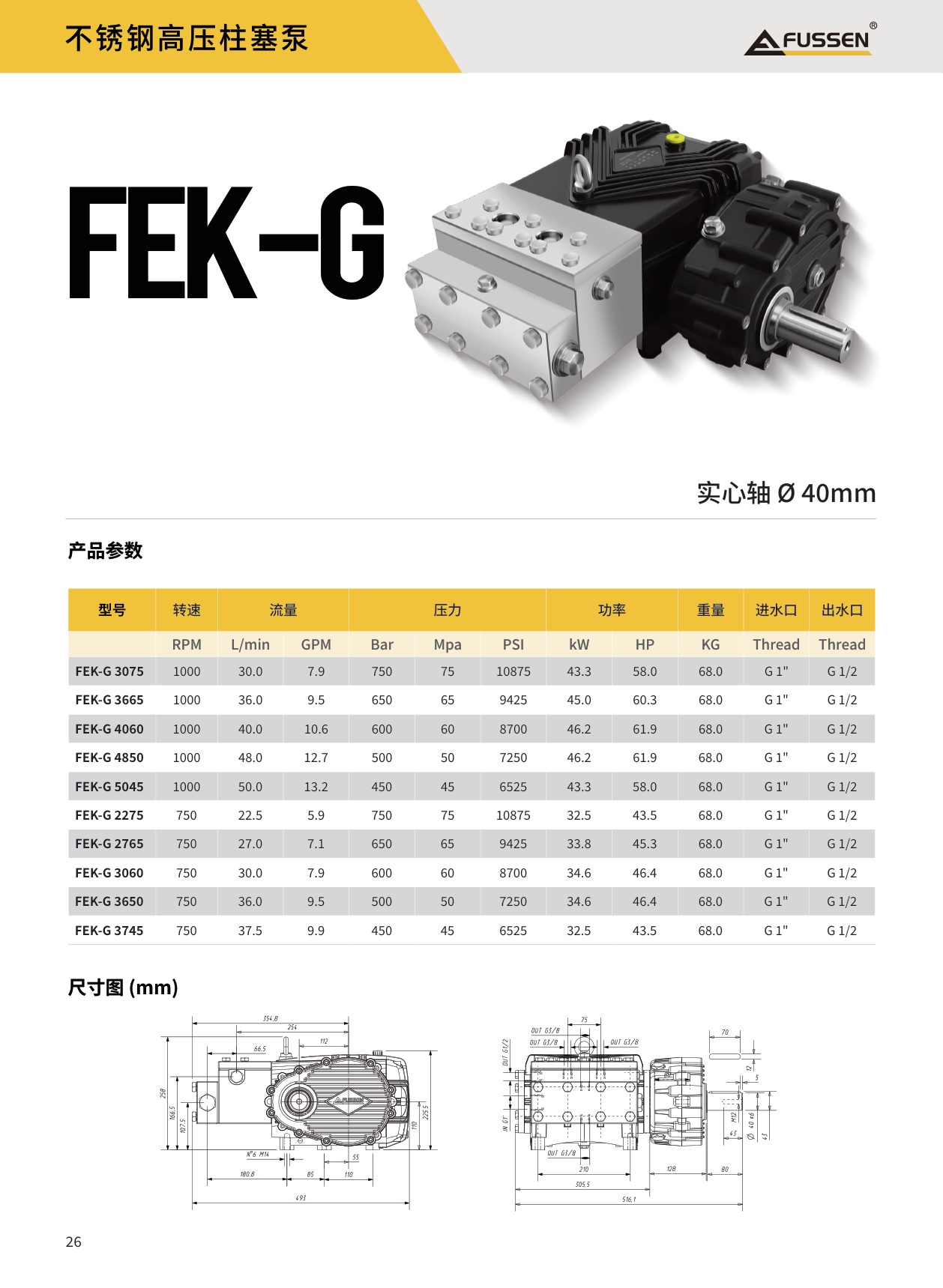

Dimension Diagram (mm)
